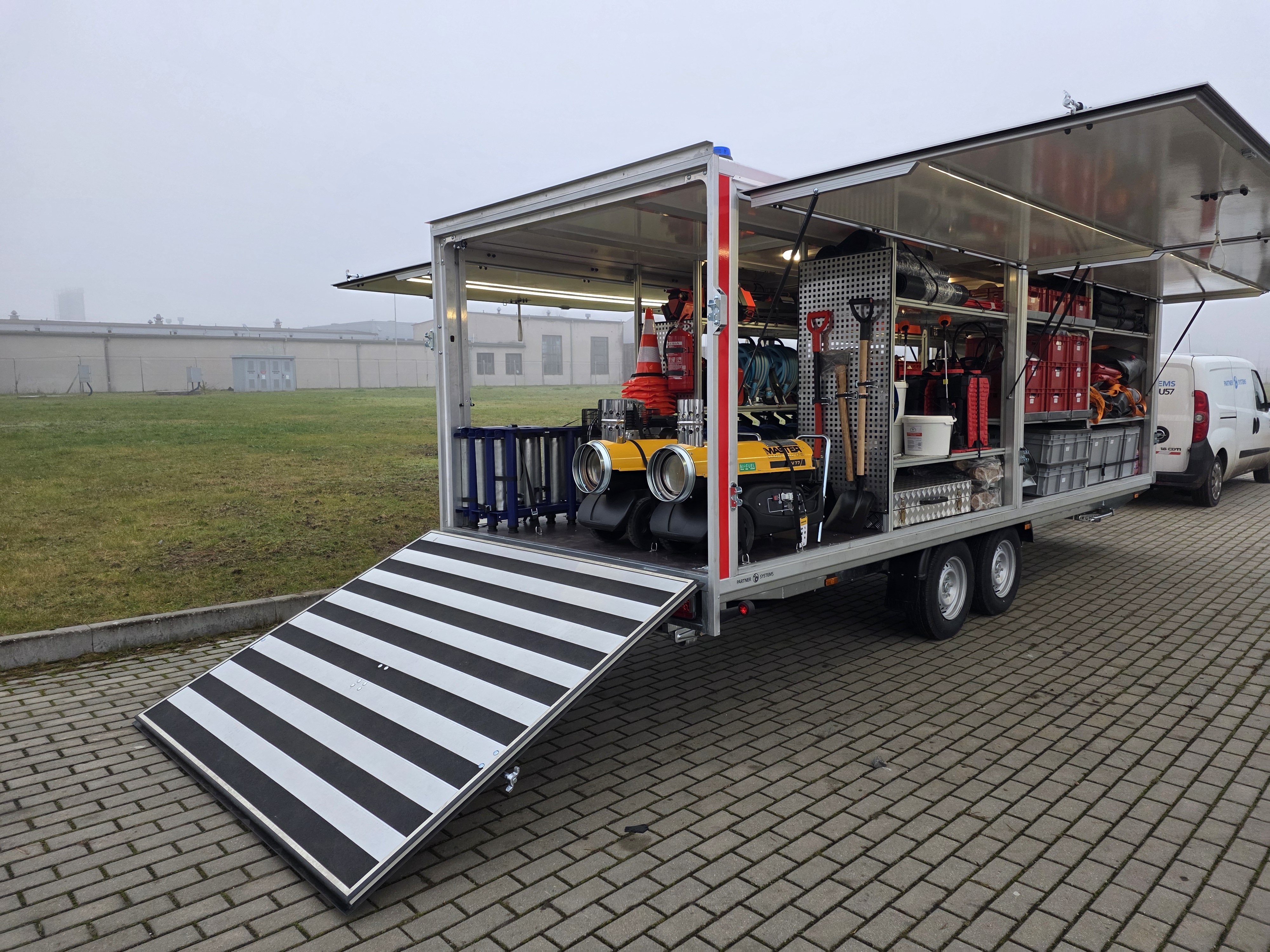

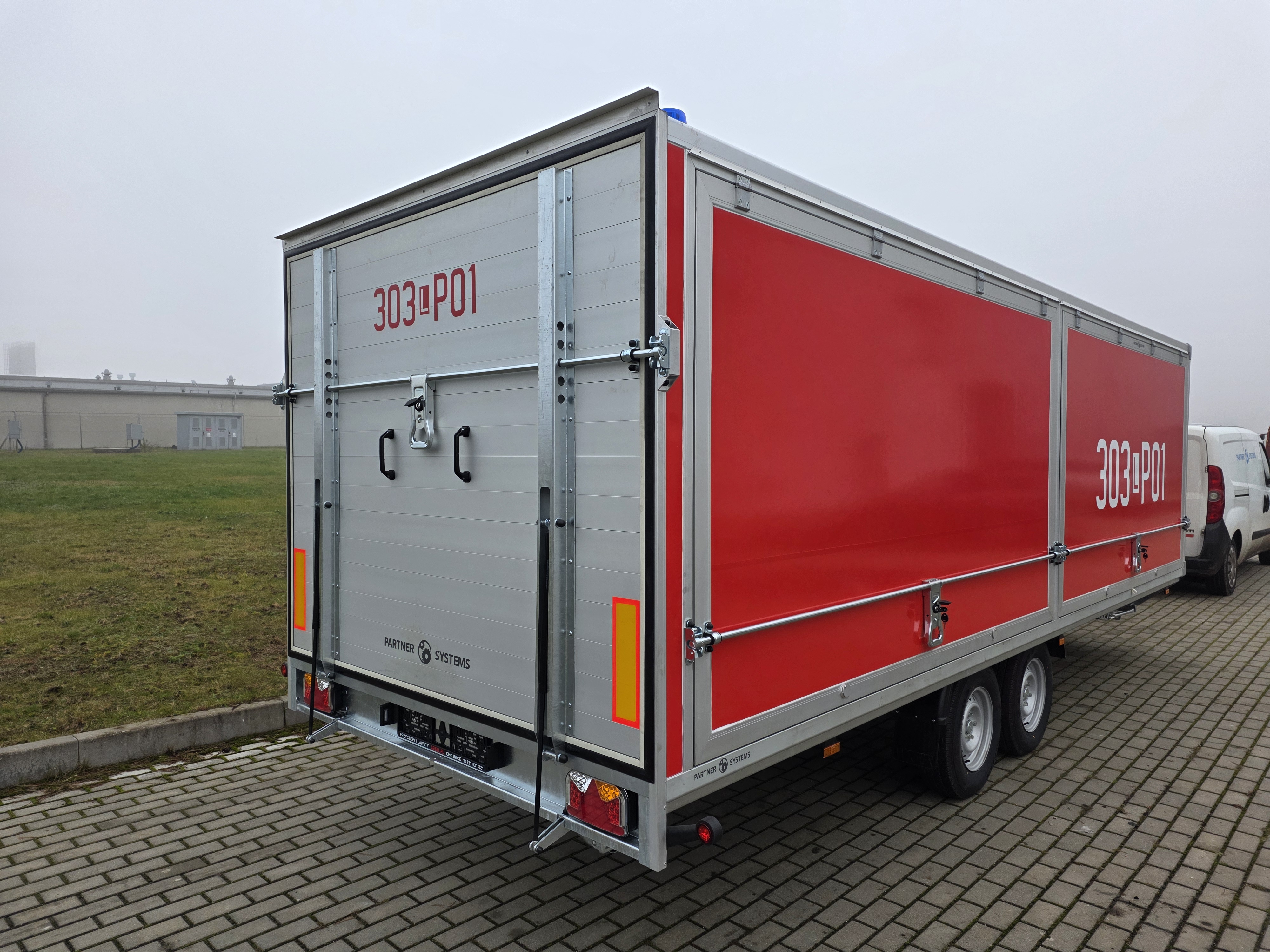

The trailer designed for the decontamination of individuals showing symptoms of dangerous infectious diseases constitutes a highly specialized mobile transport system used to deliver pneumatic tents and technical decontamination gear directly to the site of operation. It is an twin-axle trailer layout with a Gross Vehicle Weight Rating (GVWR) of 3,500 kg, engineered and fully approved in strict accordance with current road traffic regulations. All equipment components are integrated into custom secure mountings, guaranteeing a dedicated storage location for each item and effective retention against shifting during transit.
The unit incorporates three pneumatic tents designed to execute the complete decontamination line process.
In the first unit (dry tent), preparatory actions are carried out, including personnel logging, initial assessment, and clothing removal. Individuals are then guided to the middle (wet) tent, equipped with a comprehensive shower infrastructure, where the core decontamination phase is executed.
Upon completion, individuals proceed to the third (dry) tent, where they change into provided replacement garments. The system's processing layout enables the decontamination of approximately 60 ambulatory individuals per hour within a single vertical line of flow.
Throughput Capacity - the technical deployment configuration enables the decontamination of approximately 60 ambulatory persons per hour along a single vertical flow line.
Mobility and Compliance - twin-axle trailer chassis with 3,500 kg GVWR, fully approved in compliance with road traffic safety regulations.
Ergonomic and Rigid Bodywork - heavy-duty aluminum frame, body panels composed of laminated aluminum sheets, and an adjustable interior shelving system built from extruded profiles.
Energy Independence - equipped with an integrated battery backup module to power locker and workspace lighting (up to 6 hours autonomous cycle) alongside a 3 kW portable generator unit.
Secure Equipment Transport - customized anchoring systems ensure that every equipment component maintains a dedicated slot and is fully protected against transit damage.
| Parameter / Element | Specification |
|---|---|
| Length / Width (internal) | 6000 mm / 2000 mm |
| Total height from ground level | 2600 mm |
| Gross Vehicle Weight Rating (GVWR) | 3500 kg |
| Structure | Aluminum framework, body composed of laminated aluminum plates |
| Bodywork color | Red |
| Power Supply | 3 kW Generator set (1 pc.), Battery backup system (up to 6 hours) |
| Pneumatic tents | Dry 16 m² (2 pcs.), Wet 35 m² with internal zone partitioning (1 pc.) |
| Water & Heating hardware | Space heater (2 pcs.), Water heater unit, Decontamination shower assembly, Flexible waste-water storage tanks 2.5 m³ (2 pcs.) |
| Responder protection | Personal Protective Equipment (40 sets) |
